In modern electrical power systems, maintaining optimal power quality is paramount. As industries expand and technological advancements proliferate, the demand for efficient and reliable power supply intensifies. Two critical devices that play a significant role in enhancing power quality are the Static Var Generator (SVG) and the Active Harmonic Filter (AHF). While both are integral in improving electrical conditions, they serve distinct functions and are applied differently within power systems. Understanding the static var generator and the AHF is essential for engineers and professionals tasked with optimizing power system performance.
This article delves deep into the fundamental differences between SVGs and AHFs. By exploring their operating principles, applications, and impact on power systems, we aim to provide a comprehensive analysis that elucidates their respective roles. The objective is to assist professionals in making informed decisions when selecting devices for power quality improvement initiatives.
Before dissecting the differences between SVGs and AHFs, it's crucial to grasp the concepts of reactive power and harmonics in electrical systems. Reactive power and harmonics significantly influence power quality, efficiency, and the stability of electrical networks.
Reactive power is the component of alternating current electricity that oscillates between the source and the load. It does not perform any real work but is essential for maintaining the voltage levels necessary for equipment operation. Inductive loads such as transformers, motors, and reactors consume reactive power, which can lead to a lagging power factor. A low power factor indicates that the electrical system is not utilizing the supplied power efficiently, resulting in increased losses and reduced capacity.
Compensating for reactive power is vital. Devices like the static var generator provide dynamic reactive power support, enhancing power factor and stabilizing voltage levels. This compensation reduces losses, improves system efficiency, and increases the capacity of the electrical network.
Harmonics are voltage or current components in an electrical power system that operate at integer multiples of the fundamental frequency. These are generated by non-linear loads such as variable frequency drives, UPS systems, rectifiers, and other electronic devices. Harmonics distort the waveform, leading to power quality issues including overheating of equipment, increased losses, malfunction of protective devices, and interference with communication lines.
Mitigating harmonics is critical for the reliable operation of power systems. Devices like Active Harmonic Filters are designed specifically to counteract these distortions. They inject compensating currents that cancel out the harmonic components, thereby restoring the quality of the power supply and ensuring the longevity and efficiency of electrical equipment.

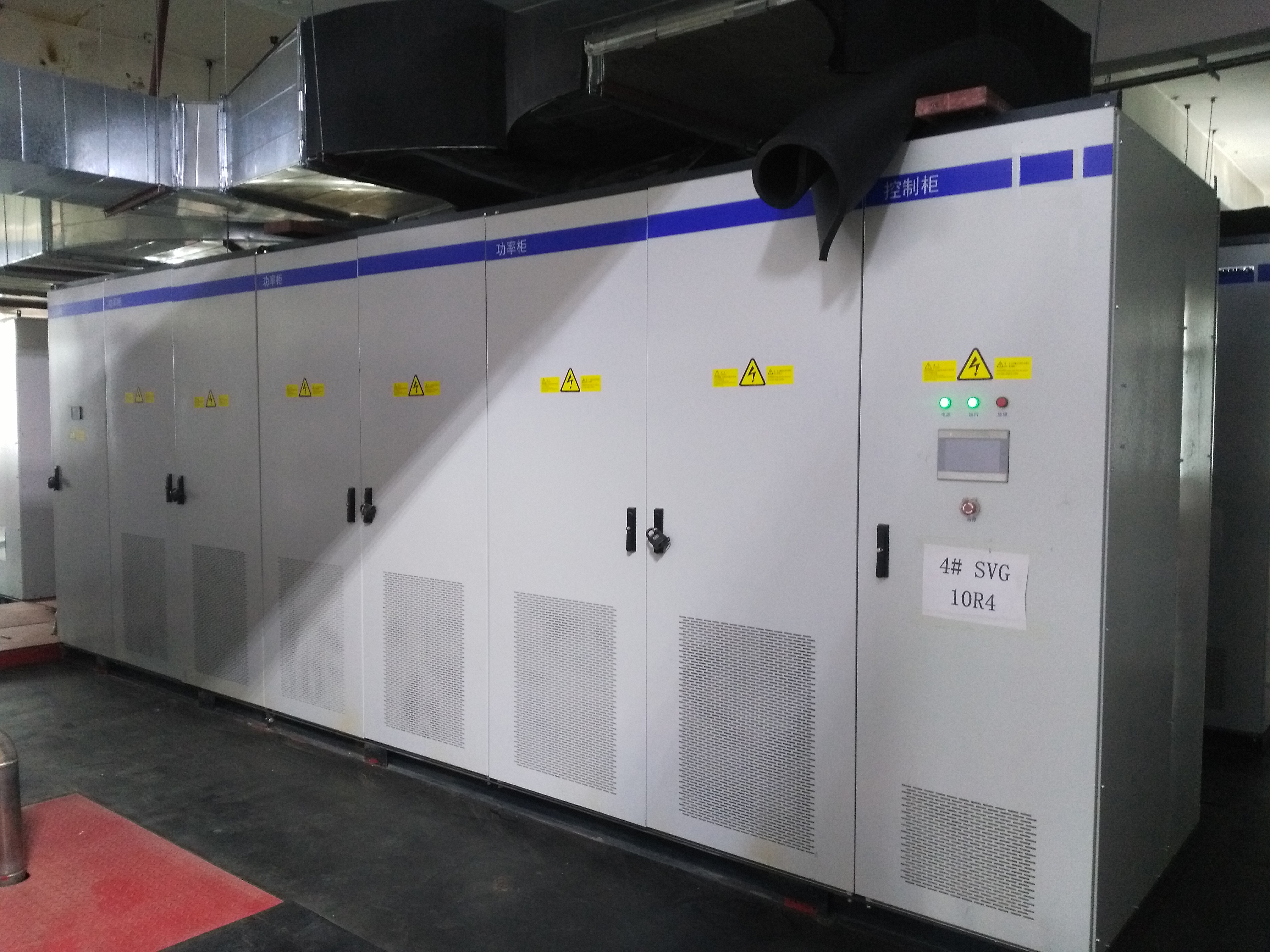

Static Var Generators are advanced power electronic devices used for dynamic reactive power compensation in electrical power systems. They are pivotal in controlling voltage levels, improving power factor, and enhancing the overall stability of the grid. SVGs are part of Flexible AC Transmission Systems (FACTS) and are integral in modern power systems facing fluctuating load conditions.
SVGs operate by generating or absorbing reactive power to maintain the desired voltage levels and power factor in the system. They utilize power electronic converters, typically Voltage Source Converters (VSC), to produce a controllable voltage source. By adjusting the amplitude and phase angle of the output voltage relative to the system voltage, the SVG can inject capacitive or inductive reactive power as needed.
The key components of an SVG include:
Power Electronic Inverter: Converts DC voltage to AC and controls the injected reactive current.
DC Capacitor: Provides the DC voltage necessary for the inverter operation.
Control System: Monitors system parameters and adjusts the inverter output accordingly.
SVGs respond rapidly to changes in load conditions, offering near-instantaneous reactive power compensation. This swift response is crucial for stabilizing voltage during transient events and mitigating issues arising from fluctuating loads.
SVGs are widely used in various applications where dynamic reactive power control is necessary. Some typical applications include:
Industrial Facilities: For improving power factor and voltage stability in plants with large inductive loads like motors, welders, and arc furnaces.
Renewable Energy Integration: In wind farms and solar power plants to manage reactive power fluctuations and stabilize the grid.
Power Transmission Systems: To enhance voltage regulation and increase the transmission capacity of existing lines.
By implementing an SVG, facilities can achieve improved power quality, reduced losses, and enhanced operational efficiency, making it a valuable asset in modern power systems.
Active Harmonic Filters are power electronic devices designed to mitigate harmonics in electrical power systems. They are essential for maintaining power quality by eliminating distortion in voltage and current waveforms caused by non-linear loads. AHFs play a crucial role in preventing equipment malfunctions, reducing losses, and complying with power quality standards.
AHFs work by injecting compensating currents into the power system that are equal in magnitude but opposite in phase to the harmonic currents generated by non-linear loads. They utilize advanced digital signal processing to monitor the load currents in real-time, extract the harmonic components, and then generate the appropriate compensating currents through power electronic converters.
Key components of an AHF include:
Current Sensors: Measure the load currents and detect harmonics.
Control Unit: Processes the signals and determines the compensating currents required.
Power Electronic Converter: Generates the compensating harmonic currents.
By continuously monitoring and counteracting harmonics, AHFs maintain the waveform's purity, ensuring the power system operates efficiently and equipment is protected from harmonic-related issues.
AHFs are utilized in environments where harmonic distortion is prevalent due to the extensive use of non-linear loads. Common applications include:
Industrial Plants: Facilities with variable frequency drives, rectifiers, and other electronic equipment that generate harmonics.
Commercial Buildings: Buildings with significant computer equipment, lighting systems, and UPS systems.
Data Centers: Where sensitive equipment requires clean power free from distortions.
Implementing AHFs helps in compliance with power quality standards, reduces equipment downtime, and enhances the overall efficiency of the electrical system.
While both SVGs and AHFs are essential for power quality improvement, they serve different primary functions and operate based on distinct principles. Understanding these differences is crucial for selecting the appropriate solution for specific power system challenges.
The fundamental difference between SVGs and AHFs lies in their primary purposes:
Static Var Generators: Primarily used for reactive power compensation and voltage regulation. They aim to stabilize voltage levels and improve the power factor by injecting or absorbing reactive power as required.
Active Harmonic Filters: Specifically designed for harmonic mitigation. Their main function is to eliminate harmonic distortion caused by non-linear loads by injecting compensating currents to neutralize harmonics.
Both SVGs and AHFs offer fast response times due to their power electronic nature; however, their performance characteristics differ based on their functions:
SVGs: Provide rapid reactive power compensation, essential for dynamic voltage regulation and power factor correction in fluctuating load conditions.
AHFs: Offer swift harmonic mitigation by continuously monitoring and counteracting harmonic currents, ensuring consistent power quality.
Their abilities to handle harmonics differ significantly:
SVGs: Standard SVGs primarily focus on reactive power compensation and have limited harmonic filtering capabilities. Some advanced SVGs can mitigate low-order harmonics (typically up to the 13th order) but are not as effective as AHFs for comprehensive harmonic mitigation.
AHFs: Designed explicitly to filter a wide range of harmonics, typically from the 2nd up to the 50th order. They effectively reduce Total Harmonic Distortion (THD) and are preferred when harmonic mitigation is the primary concern.
Both devices can perform reactive power compensation, but their effectiveness varies:
SVGs: Highly efficient in providing dynamic reactive power support, effectively improving power factor and stabilizing voltage.
AHFs: Some AHFs offer limited reactive power compensation as a secondary function. Their primary design focuses on harmonic mitigation, and they are less effective for comprehensive reactive power control compared to SVGs.
Their capabilities in load balancing and voltage stabilization are as follows:
SVGs: Offer excellent voltage stabilization by adjusting reactive power flow, thus maintaining voltage levels within desired limits. They also aid in balancing unbalanced loads by compensating reactive power discrepancies across phases.
AHFs: Can assist in load balancing by mitigating harmonic currents and, in some configurations, can help balance three-phase currents. However, voltage stabilization is not their primary function.
The internal components and control mechanisms differ between the two devices:
SVGs: Utilize voltage source converters with control systems that focus on reactive power injection and voltage control. They adjust the phase and amplitude of their output to match the system's reactive power needs.
AHFs: Employ current source converters with control algorithms centered on detecting and canceling harmonic currents. They require precise real-time monitoring of load currents to generate the necessary compensating signals.
Selecting the appropriate device depends on the specific power quality issues faced within the electrical system. Understanding the unique requirements of the application is essential for making an informed decision.
Consider the following when choosing between an SVG and an AHF:
When to Choose an SVG:
Primary issues with reactive power leading to low power factor.
Need for dynamic voltage regulation due to fluctuating loads.
Industries with large inductive loads such as heavy machinery or motors.
When to Choose an AHF:
Systems experiencing significant harmonic distortion due to non-linear loads.
Requirement to comply with stringent power quality standards regarding harmonics.
Protection of sensitive equipment from harmonic-related issues.
Budget constraints may influence the decision:
SVGs: Generally more cost-effective for reactive power compensation alone.
AHFs: May have higher costs due to advanced control systems for harmonic mitigation.
Combined Solutions: For systems requiring both reactive power compensation and harmonic mitigation, considering devices that integrate both functionalities may offer cost savings in the long run.
Examining practical applications helps illustrate the differences and appropriate usage of SVGs and AHFs.
An industrial plant with numerous large motors experienced low power factor penalties from the utility company. Voltage fluctuations were also causing operational inefficiencies. Implementing an SVG provided dynamic reactive power compensation, improved the power factor to near unity, stabilized voltage levels, and eliminated penalties, resulting in significant cost savings.
A high-rise commercial building housing various offices and data centers faced equipment malfunctions and overheating due to high harmonic distortion from extensive use of electronic devices. Installing an AHF mitigated the harmonics, reduced THD to acceptable levels, protected equipment, and enhanced the reliability of the power system.
In the quest for optimal power quality, both Static Var Generators and Active Harmonic Filters are indispensable tools. SVGs excel in providing dynamic reactive power compensation, improving power factor, and stabilizing voltage levels in systems with fluctuating reactive power demands. AHFs are unmatched in their ability to mitigate harmonics caused by non-linear loads, ensuring the purity of power waveforms and protecting equipment.
Understanding the distinctions between these devices is essential for engineers and decision-makers tasked with enhancing power system performance. By selecting the appropriate device—be it an SVG for reactive power challenges or an AHF for harmonic issues—professionals can effectively address power quality problems, improve efficiency, and ensure the reliability of electrical systems.
Yes, combining an SVG and an AHF is common in systems where both reactive power compensation and harmonic mitigation are required. Some advanced devices offer integrated solutions that provide both functionalities, optimizing power quality comprehensively.
An SVG improves power factor by dynamically generating or absorbing reactive power. By injecting leading or lagging reactive current, it compensates for the reactive power consumed by inductive or capacitive loads, thus bringing the power factor closer to unity.
Indicators include excessive heating of equipment, frequent malfunctions of electronic devices, tripping of protective systems, audible noise from transformers, and measurements showing high Total Harmonic Distortion (THD) levels. If non-linear loads are prevalent, installing an AHF can mitigate these issues.
Yes, standards such as IEEE 519 define acceptable levels of harmonic distortion in electrical systems. Utilities and regulatory bodies may impose penalties or require corrective measures if these standards are not met, making devices like AHFs essential for compliance.
Key factors include the magnitude of reactive power or harmonic currents to be compensated, system voltage levels, load characteristics, response time requirements, and overall system design. Consulting with manufacturers or specialists ensures proper sizing and effective performance.
While AHFs primarily focus on harmonic mitigation, some can provide limited reactive power compensation as a secondary function. However, they are not as effective as SVGs for comprehensive power factor correction.
Both devices are solid-state and require minimal maintenance compared to traditional capacitors or reactors. Regular inspections for proper ventilation, software updates, and monitoring of performance parameters ensure longevity and optimal operation.
